Application Info

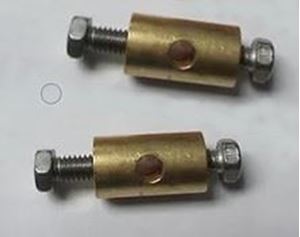

The heating element pigtail is inserted through the hole in the side of the brass connector. A long machine screw is inserted into one end of the brass connector and tightened against the heating element pigtail with a 1/4" hex tool. The short machine screw is then used to secure the ring terminal found on the wire that supplies the heating element with power, again using a 1/4" hex tool.
Only 2 connectors are needed for element installation.
Tools needed are a 1/4" hex tool (Evenheat suggests using a 1/4" nutdriver) and a pair of pliers. To tighten the machine screws, grasp the brass connector with the the pliers and tighten the screws with the 1/4" tool. Make the connection tight! A loose connection is a bad connection and will result in failure.
